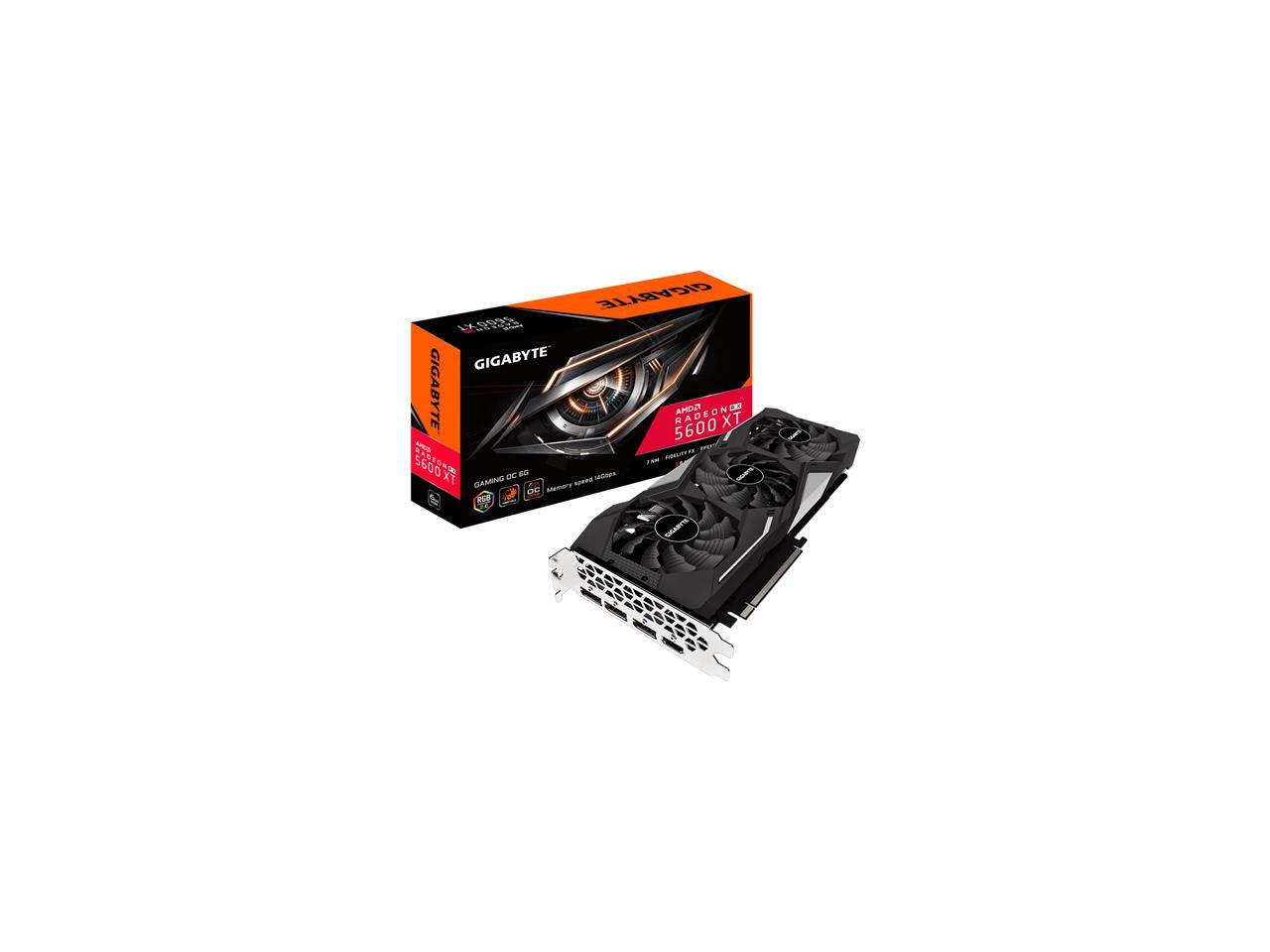

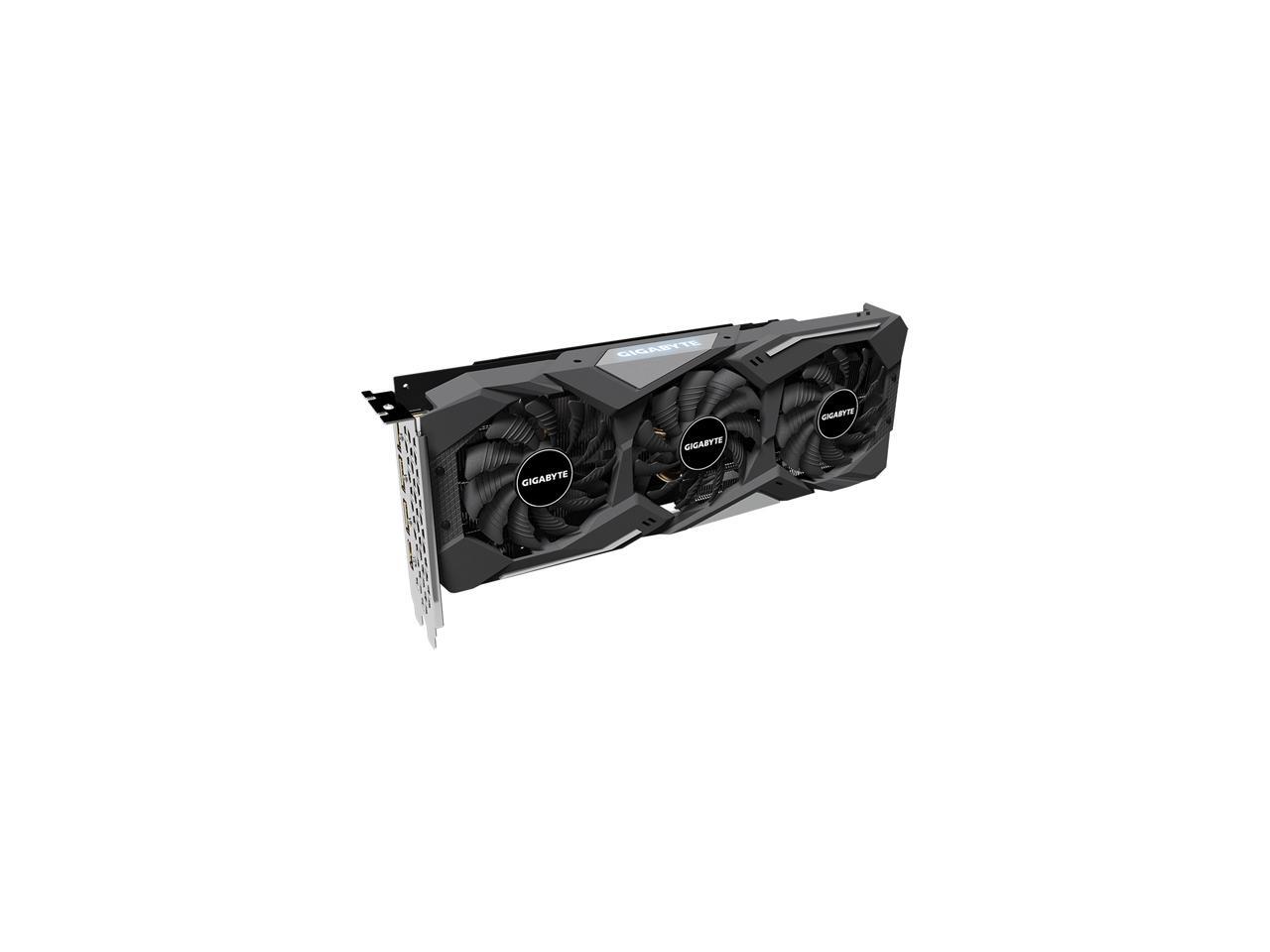

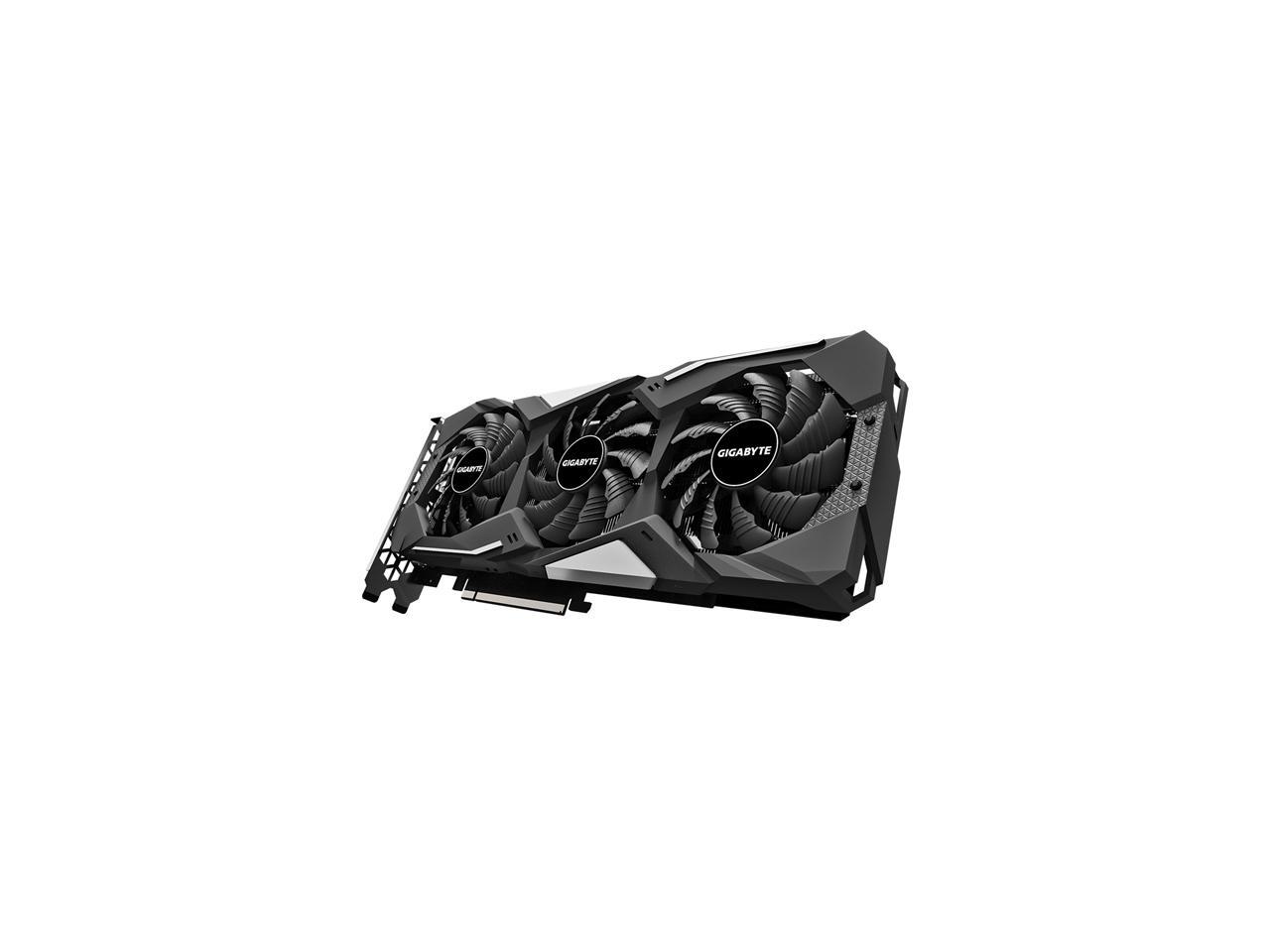

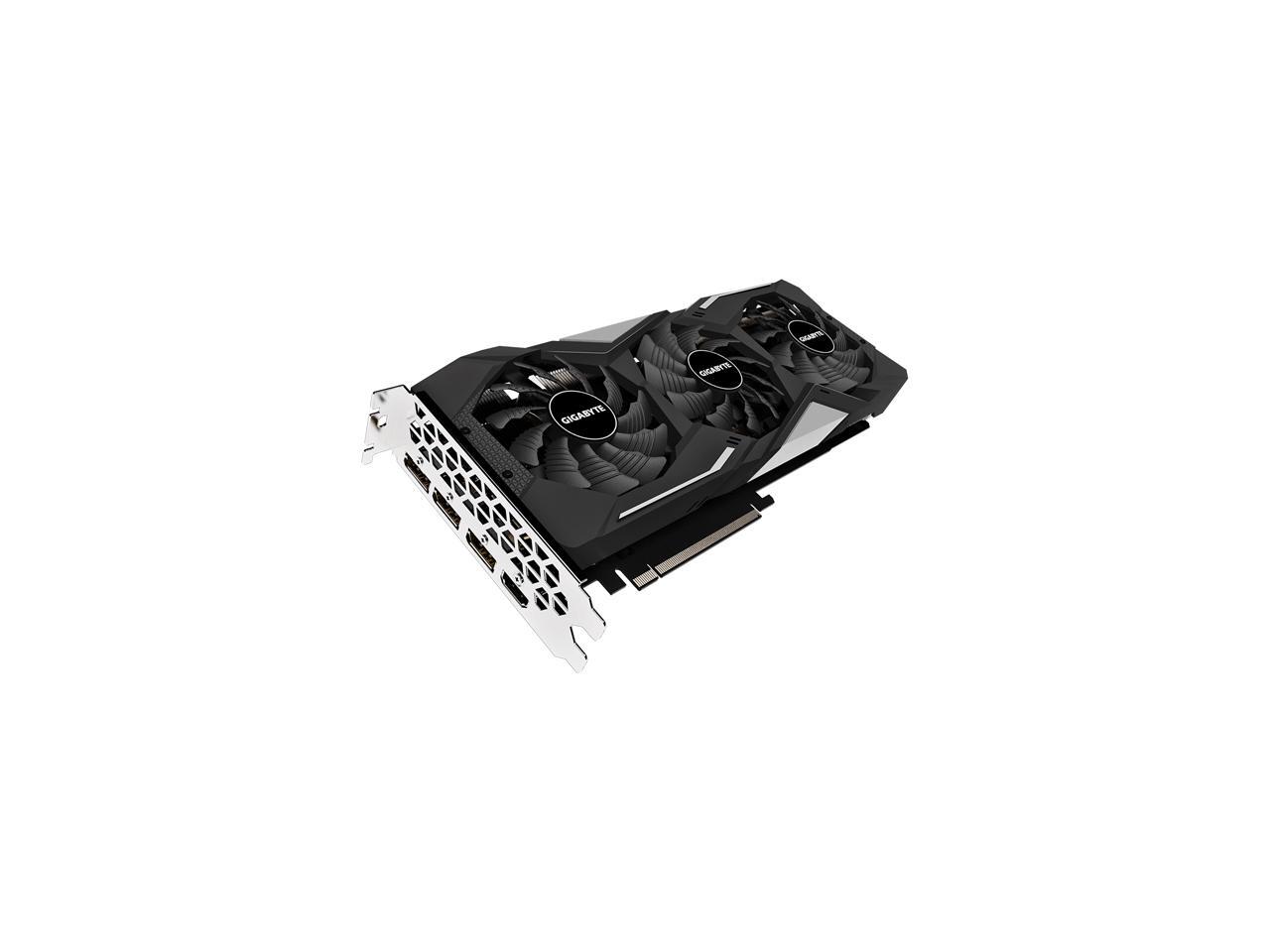

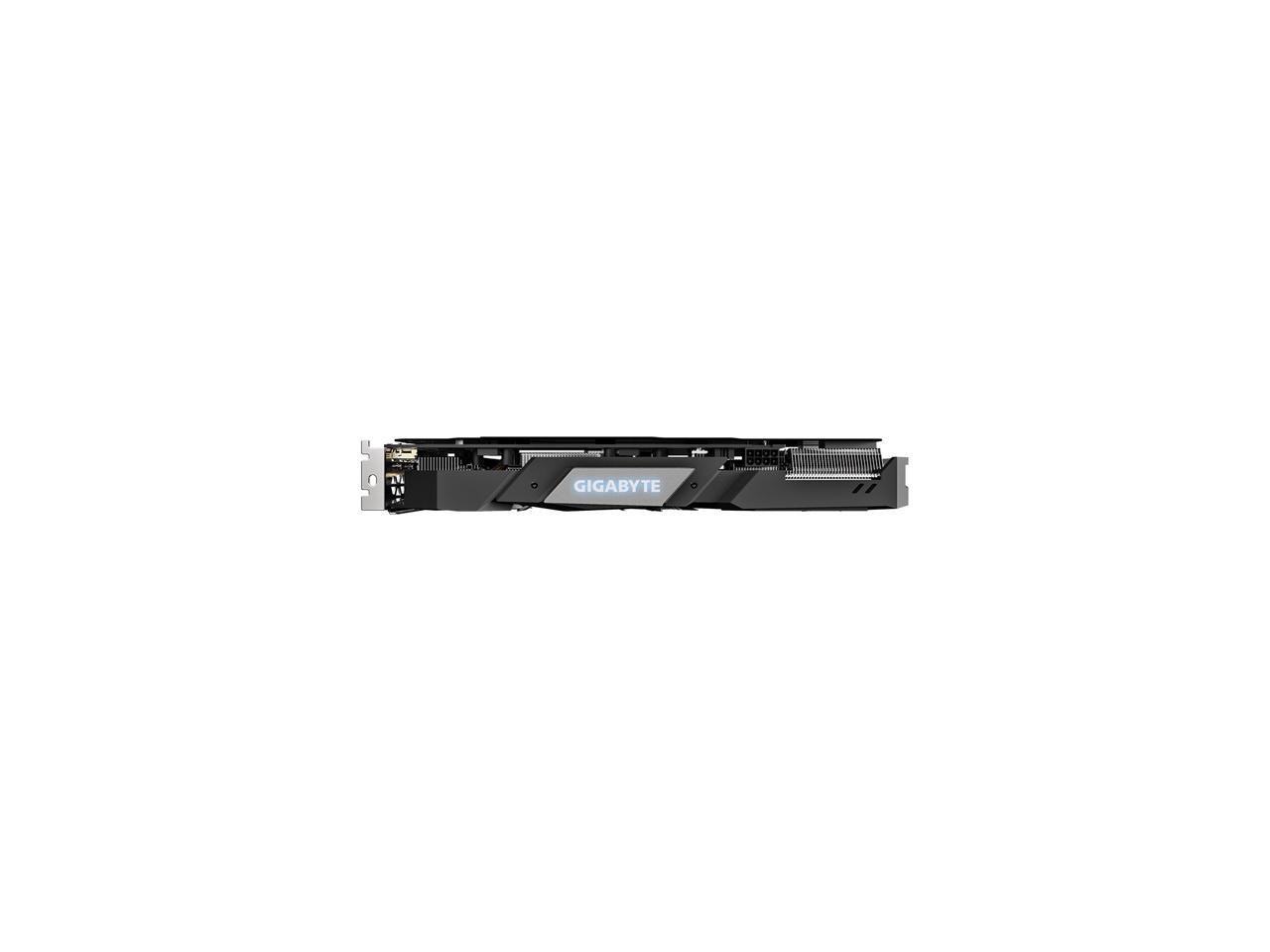

GIGABYTE Radeon RX 5600 XT GV-R56XT GAMING OC (Rev. 2.0) Video Graphics Card VGA

$269.99

0
Add to compare

Buy product

GIGABYTE Radeon RX 5600 XT DirectX 12 GV-R56XTGAMING OC-6GD rev. 2.0 6GB 192-Bit

  • Radeon RX 5600 XT GAMING OC 6G (rev. 2.0) GV-R56XTGAMING OC-6GD

    Features

    Powered by AMD Radeon RX 5600 XT
    Integrated with 6GB GDDR6 192-bit memory interface
    WINDFORCE 3X Cooling System with alternate spinning fans
    RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices
    Metal Back Plate
    PCI-Express 4.0 Support

    Core Clock

    Boost Clock: up to 1620 MHz (Reference card: 1560 MHz)
    Game Clock: 1560 MHz (Reference card: 1375 MHz)

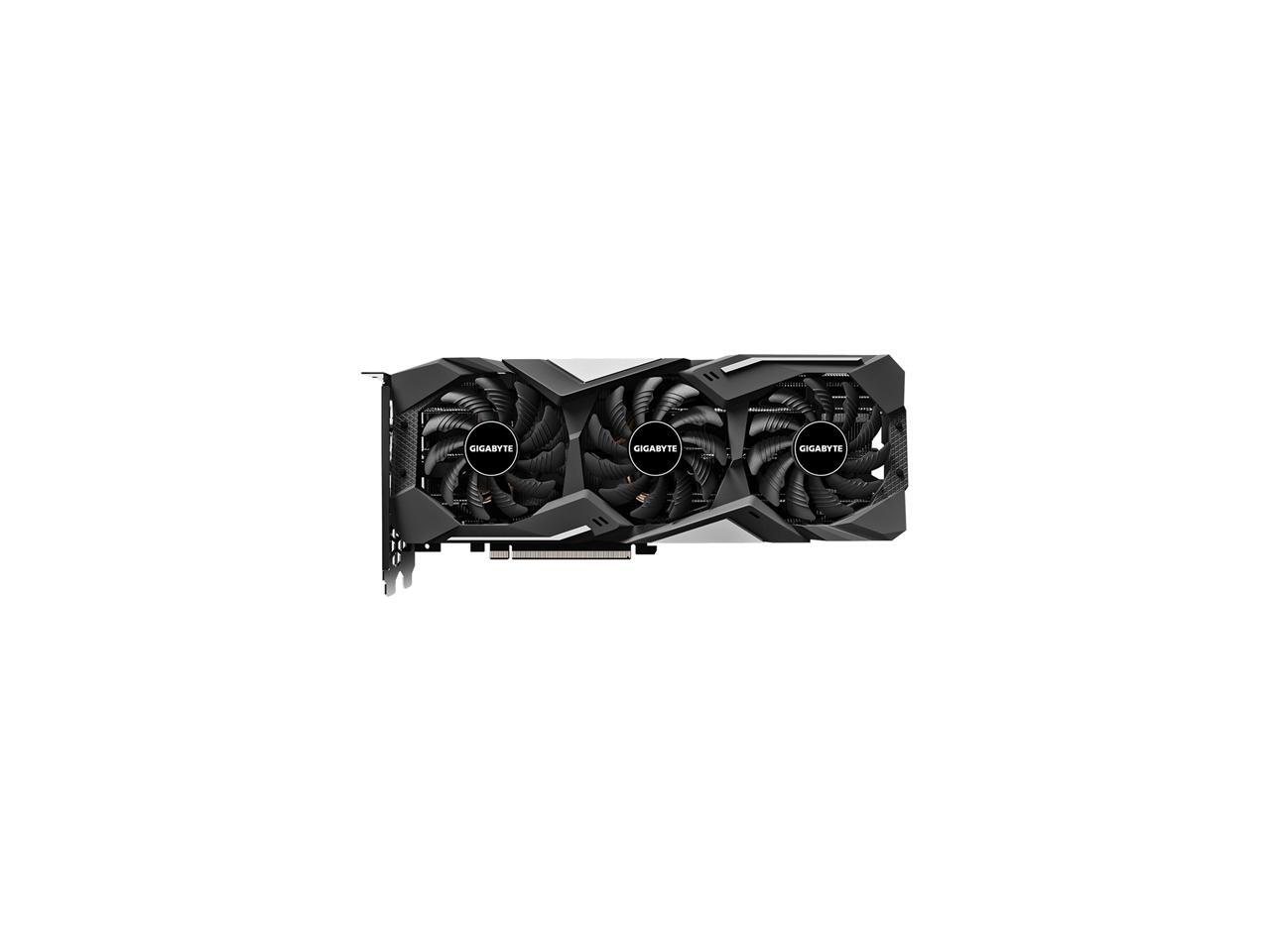

    WINDFORCE 3X COOLING SYSTEM

    The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 3 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

    ALTERNATE SPINNING

    The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

    UNIQUE BLADE FAN

    The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

    3D ACTIVE FAN

    The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

    HEAT PIPES DIRECT TOUCH GPU

    The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

    COMPOSITE HEAT-PIPE

    The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

    Game in style

    RGB FUSION 2.0

    With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

    BUILT STRONG

    EXTREME DURABILITY AND OVERCLOCKING

    The graphics card uses 6+1 power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+1 power phases.)

    FRIENDLY PCB DESIGN

    Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

    POWER INDICATOR

    The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

    Light on:
    power cable disconnected

    Light off:
    stable power supply

    Blinking:
    abnormal power supply

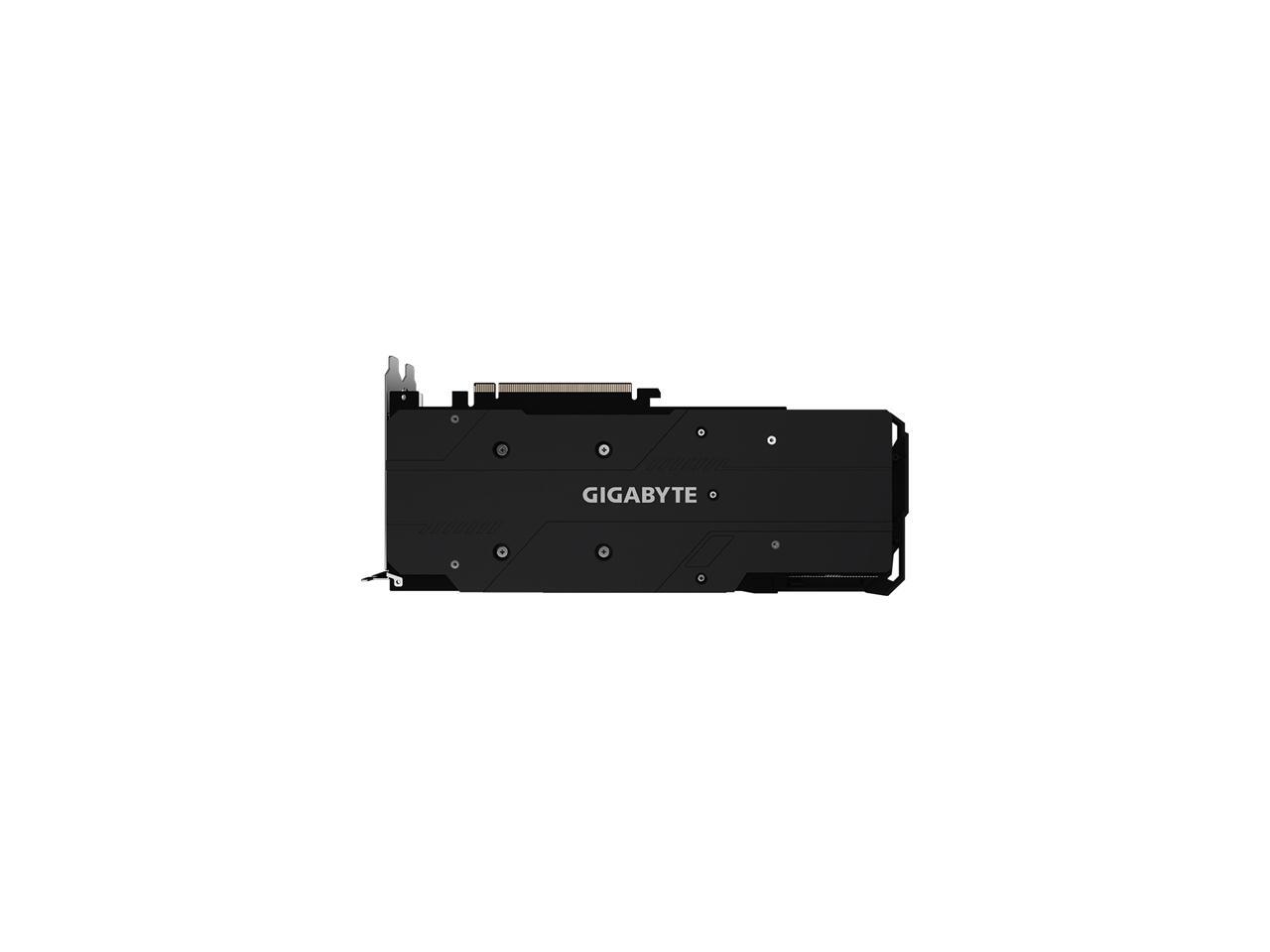

    Protection Metal Back Plate

    The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

    PCI-E 4.0 SUPPORT

    Gigabyte Radeon RX 5600 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

    IN TOTAL COMMAND

    The interface and functionality of the software is subject to each model.

    AORUS Engine

    The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

    Extreme Gaming DNA

    The AMD Radeon RX 5600 XT graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD’s advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI® Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.

    Game Fidelity, Accelerated

    The AMD Radeon RX 5600 XT graphics card powers high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. The RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening, and Integer Display Scaling6 for maximum performance and beautiful gaming experiences.

    Radeon Image Sharpening

    Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed looking visuals with virtually no performance impact.4 Now with DirectX 9, 11, and 12 support.

    Integer Display Scaling

    Play classic games and relive the retro experience by scaling on-screen images from one pixel to four pixels (or more) to deliver a retro-like visual gaming experience.

    AMD RADEON SOFTWARE ADRENALIN 2020 EDITION

    The latest Radeon™ Software Adrenalin 2020 Edition introduces a completely redesigned user experience unleashing the full potential of your GPU, with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

    Learn more about GIGABYTE GV-R56XTGAMING OC-6GD rev. 2.0

    Model
    Brand
    GIGABYTE
    Model
    GV-R56XTGAMING OC-6GD rev. 2.0
    Interface
    Interface
    PCI Express 4.0 x16
    Chipset
    Chipset Manufacturer
    AMD
    GPU Series
    AMD Radeon RX 5600 Series
    GPU
    Radeon RX 5600 XT
    Boost Clock
    1750 MHz
    Stream Processors
    2304 Stream Processors
    Memory
    Effective Memory Clock
    14000 MHz
    Memory Size
    6GB
    Memory Interface
    192-Bit
    Memory Type
    GDDR6
    3D API
    DirectX
    DirectX 12
    OpenGL
    OpenGL 4.6

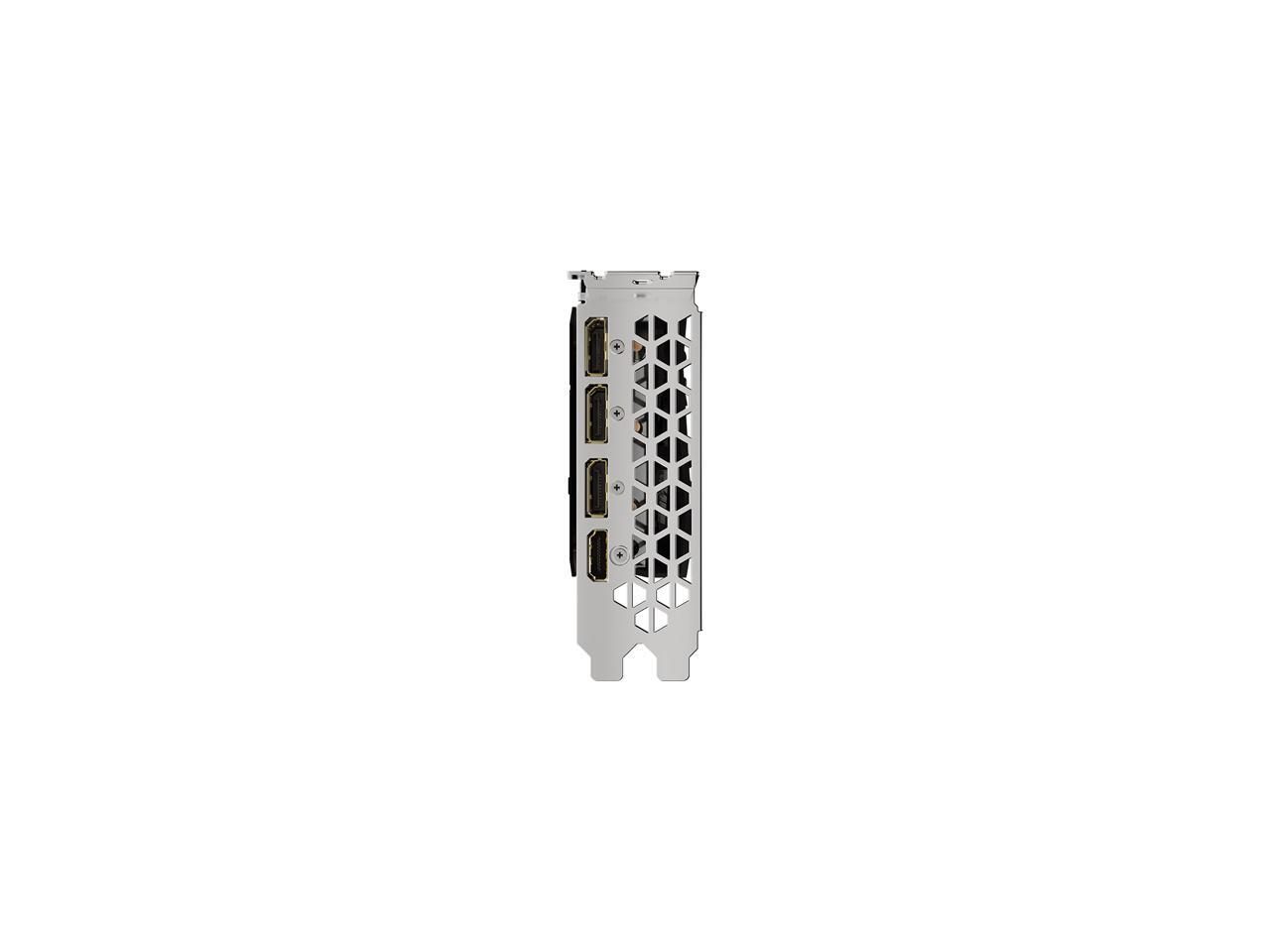

    Ports
    HDMI
    1 x HDMI 2.0b
    Multi-Monitor Support
    4
    DisplayPort
    3 x DisplayPort 1.4
    Details
    Max Resolution
    7680 x 4320 @ 60 Hz
    Virtual Reality Ready
    Yes
    Cooler
    WINDFORCE 3X
    System Requirements
    Recommended PSU: 450W
    Power Connector
    1 x 8-Pin
    Features
    Features
    Powered by AMD Radeon RX 5600 XTIntegrated with 6GB GDDR6 192-bit memory interfaceWINDFORCE 3X Cooling System with alternate spinning fansRGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devicesMetal Back PlatePCI-Express 4.0 Support
    Form Factor & Dimensions
    Form Factor
    ATX
    Max GPU Length
    280 mm
    Card Dimensions (L x H)
    11.02″ x 4.57″
    Packaging
    Package Contents
    Accessories:Quick Guide
